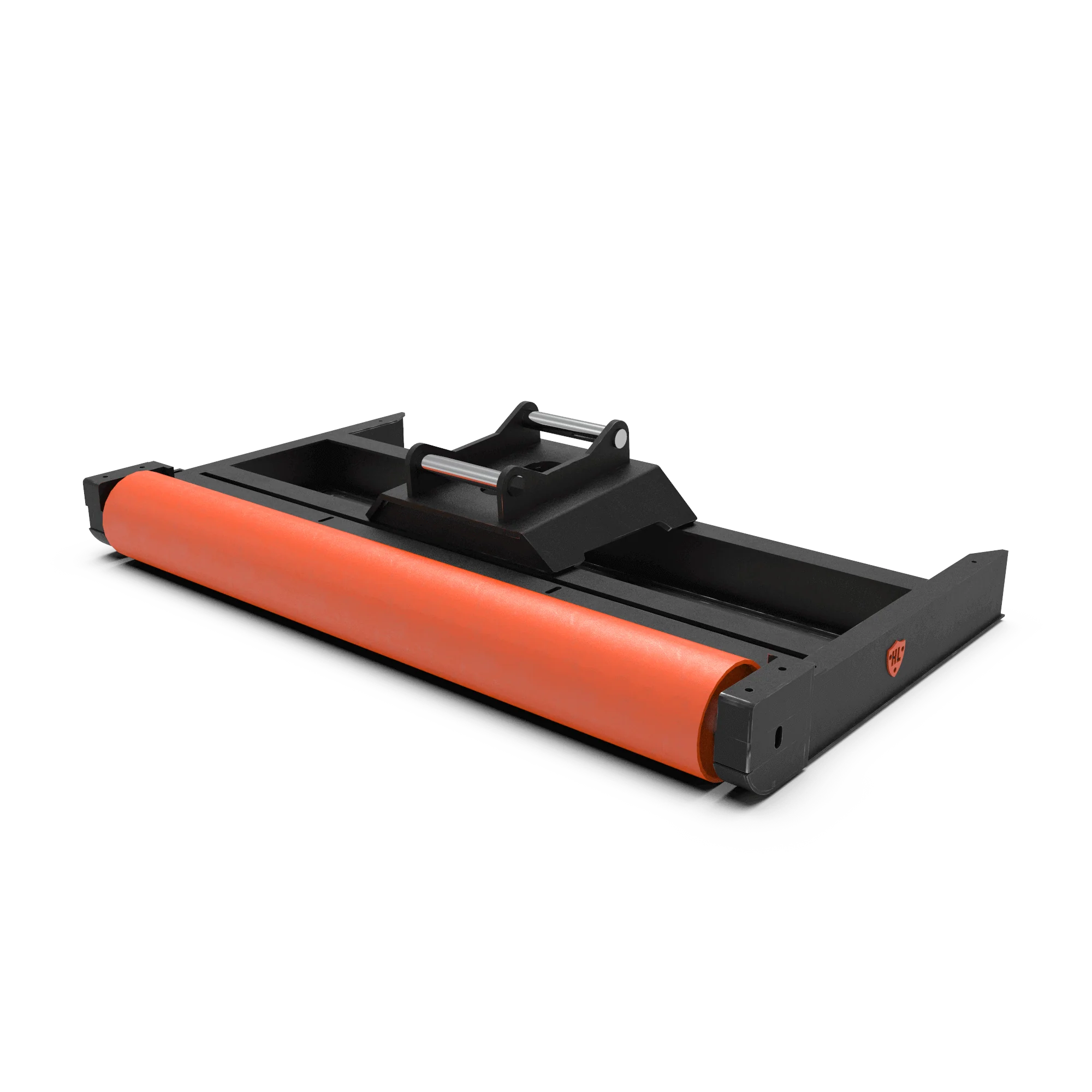

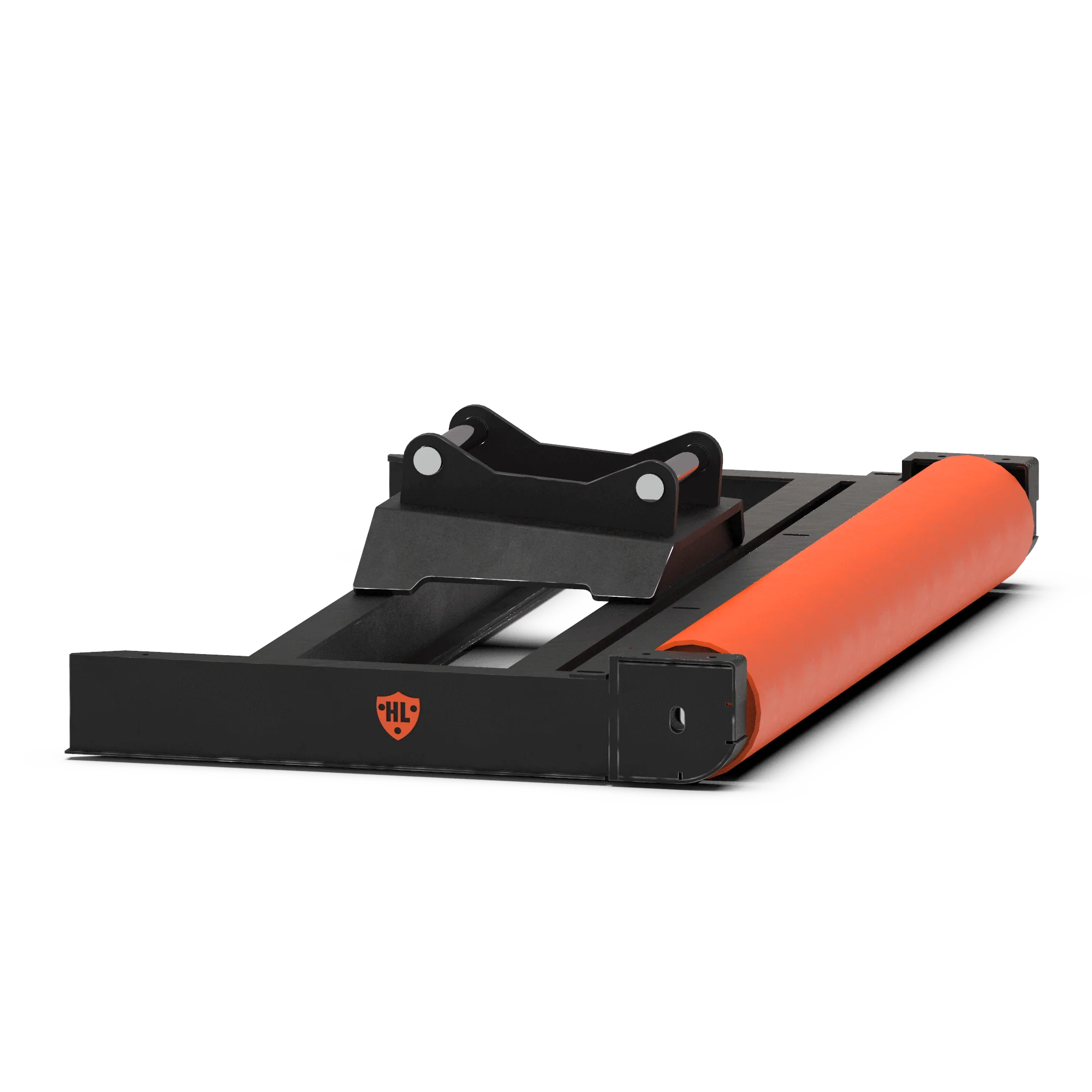

Rather than trying to use a ditch grading bucket or having to bring in additional machinery to grade surfaces, grading beams are set up to level off and compact your ground quickly and effectively. With a wide steel frame you can easily pull material to where you need it and then the heavy steel roller finishes the job off with a smooth and compact finish.

Our grading beam beams are supplied in widths from 1.5m to 3m and can be made to suit any machine.

Grading beams are a multifunctional grading attachment, best used under a tilt rotator. With the grading beam placed flat on the ground, it can be used to spread and level material using the horizontal beams, with the roller following after to compact it down.

With good operation this can all be done in one motion, so jobs like spreading road planings or gravel can be done quicker and with ease. Being wider than a ditching bucket and with the dual functions, this makes it a more efficient choice for handling and grading crush, type 1 and planings. Our grading beam beams are supplied in widths from 1.5m to 3m and can be made to suit any machine.

Model	Width (mm)	Diameter (mm)	Weight (kg)
010-GB	1500	150	258
020-GB	2000	150	292
060-GB	2500	220	366
100-GB	3000	220	370

Excavator Tools

Excavator Grading Beam - 2500mm

Excavator Grading Beam - 2000mm

Excavator Grading Beam - 1500mm

Excavator Grading Beam - 3000mm

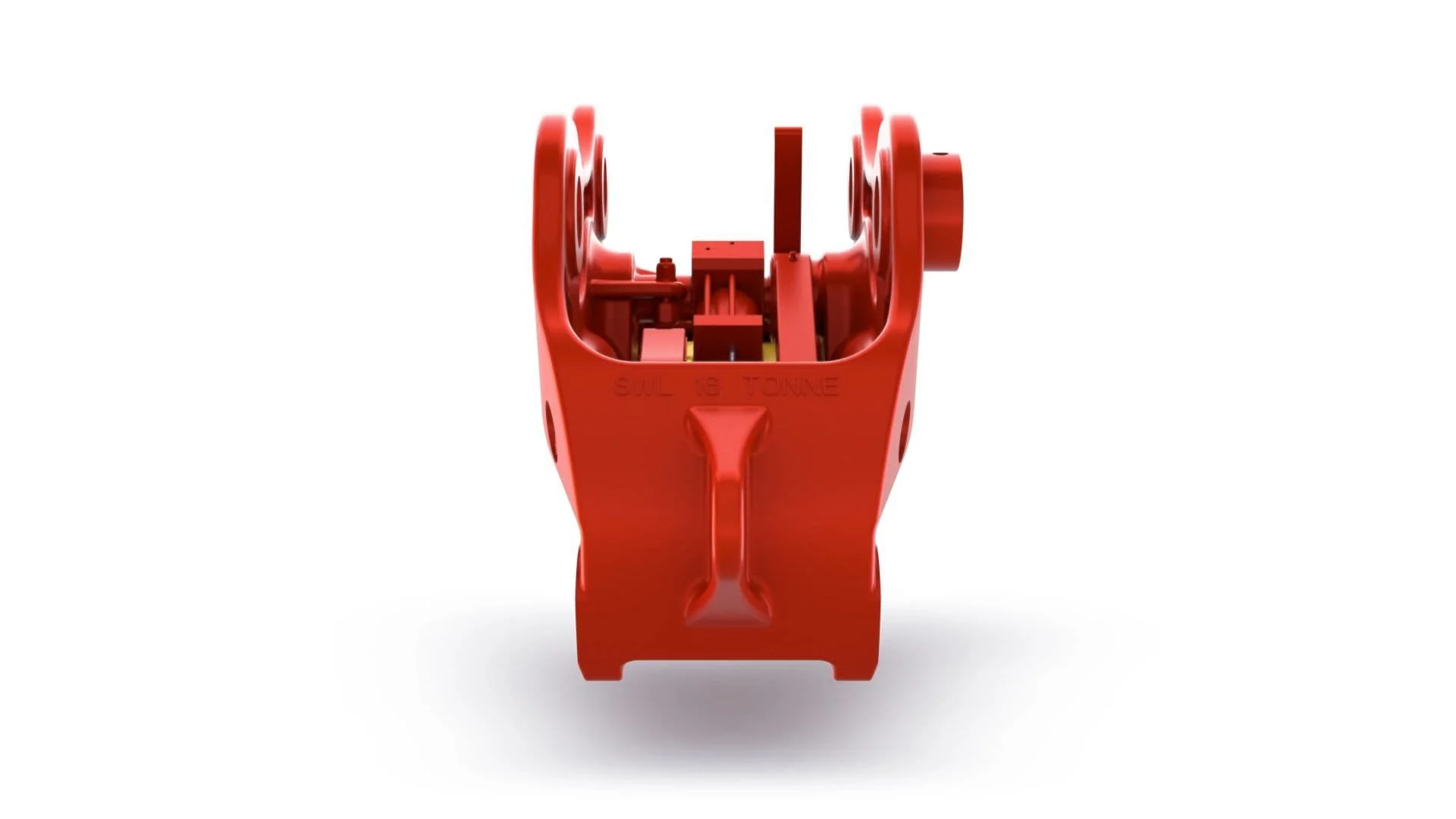

Miller Powerlatch - Hydraulic Quick Hitch - 6-45 Tonne
